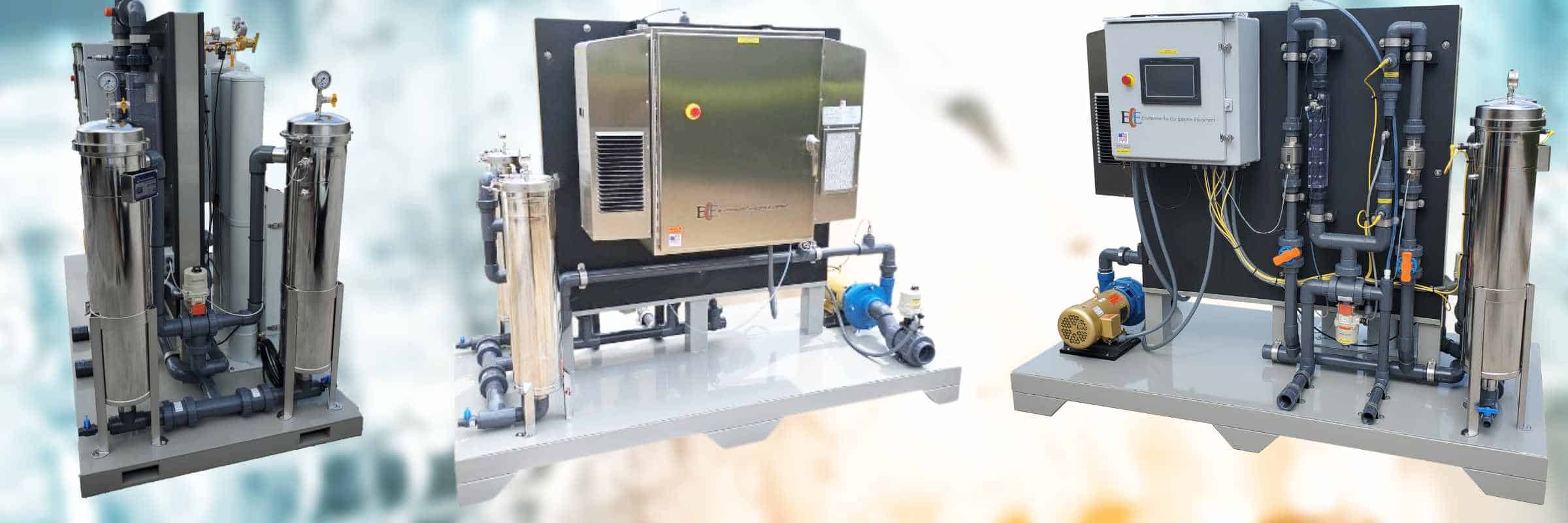

The WRO3 NB represent the latest advancements in water treatment technology. These units utilize patented Nanobubble technology to facilitate increase dissolved oxygen while injecting high levels of ozone via a venturi to provide advanced oxidation designed to reduce levels of organic and inorganic contaminants. The unique ability of nanobubbles to remain in the solution provides increased contact with the loading in the water volume.
Applications Included:
| Tank Wash Water | FPI Waste Water |
| Emulsified Oils | Metal Working Fluids |
| Ink Waste Water | Marine Waste Waters |
| Wash Water Discharge | Plating Wastes |
| Wash Water Recycling | Latex Waste Water |
| Agriculture Waste | Soluble Solutions |
FEATURES
✅ Fully automated for simple operation
✅ Rugged all stainless steel construction
✅ Dual Bag Filter filtration system with auto-monitoring
✅ Nanobubble Technology oxygen aeration 10-97 nm bubble size
✅ Venturi ozone injection
✅ Self-Generation of 93% pure oxygen used in system
✅ Plasma ozone generation technology
BENEFITS
✅ Cost effective
✅ Energy efficient
✅ ORP monitoring and control
✅ Enhanced water quality for reuse and/or evaporation
OPTIONS
✅ PH Control option available
✅ Dissolved Oxygen monitoring available
✅ Pre And Post treatment systems available
✅ Advanced Oxidation Treatment available
Or fill out our Quick Call Request form below.
Plasma ozone generation technology

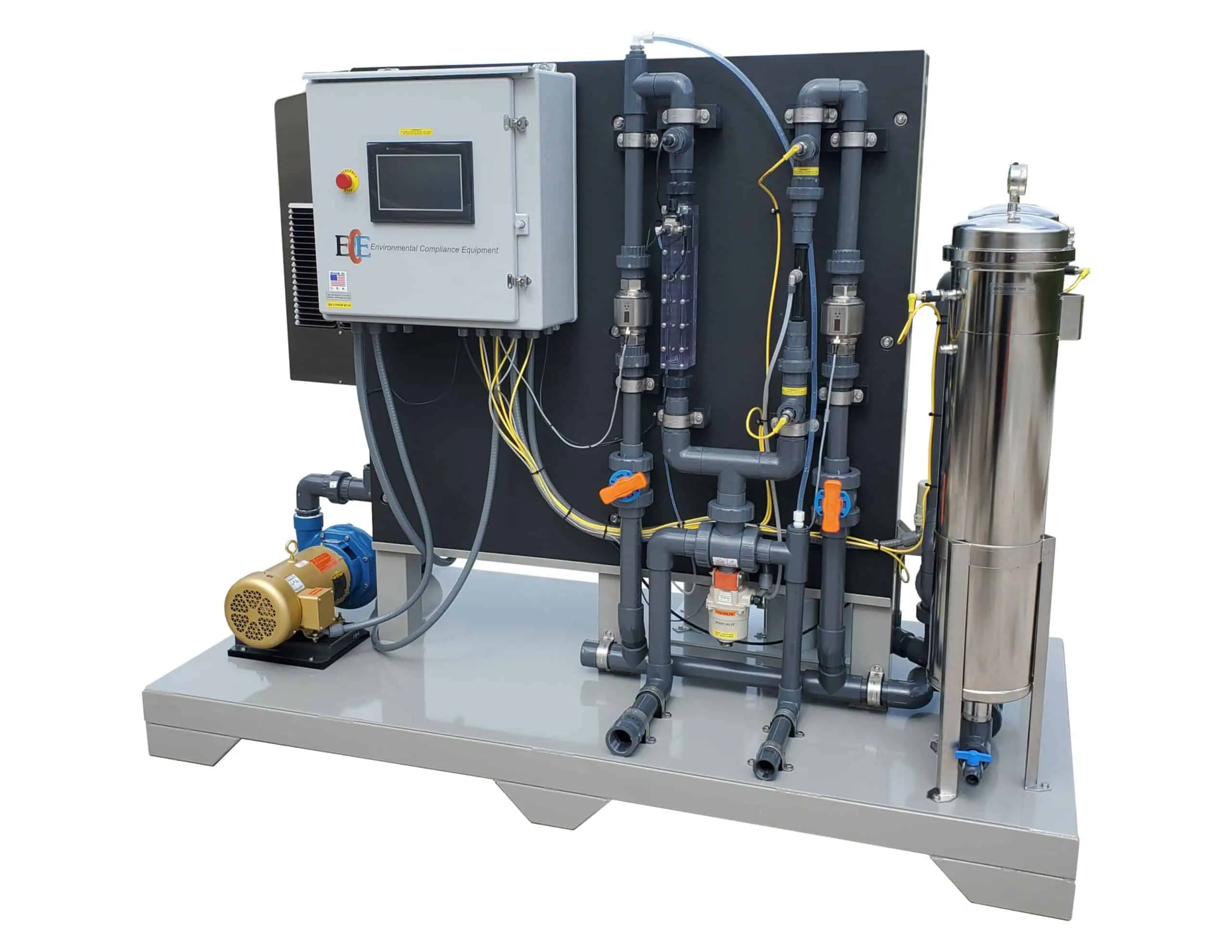

Fully automated variable control using PLC and VFD drive provides efficient use of oxidation
Nanobubble Technology

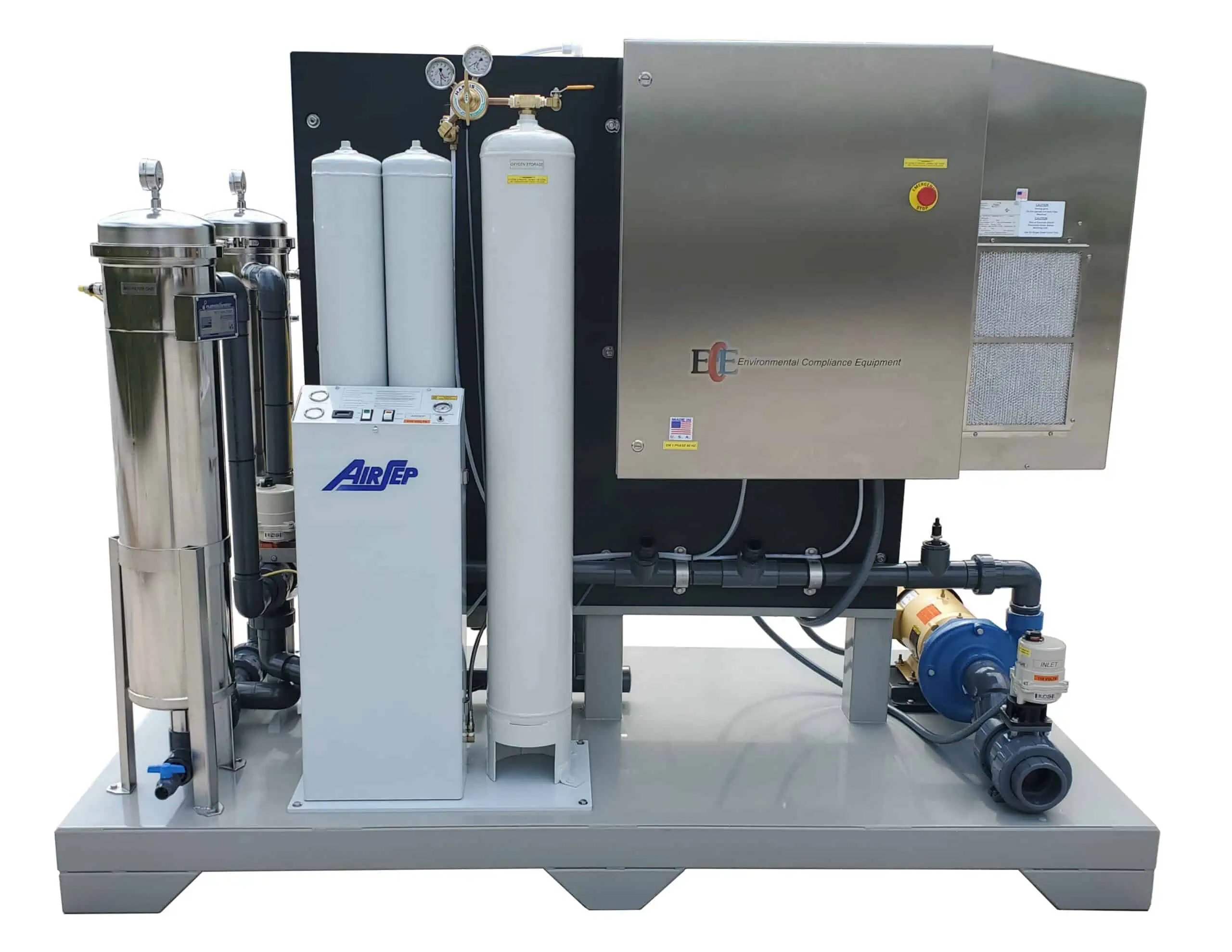

Self-generation of 93% pure oxygen *Feed compressed air required*
Dual self monitoring filtration
WRO3 NB System Specifications

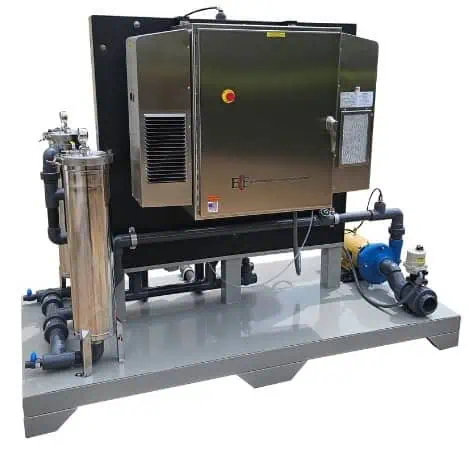

WRO3 140 NB
Gallons Per Minute Up to 160
Max Treatment capacity Up to 10,000 gallons per day based on water quality
Dimensions 96” L X 48” W 75” H Stainless Steel Skid
Shipping Weight Approx... 1900 lbs
Construction 12 ga and 14 ga 304 Stainless Steel
Electrical 230 volt three phase power with neutral and ground 40 Amp Service
Controls Fully automated touch screen PLC with VFD control for all motors
Process Control ORP monitoring and control of ozone injection
Bag Filters Standard # 2 SS Bag Filters maximum 50 micron filtration
Oxygen generation 21 to 25 standard liters per minute at 45 to 55 psi on board
Ozone generation 140 g/H with a closed looped cooling system
Compressed air requirement Flow Rate: 18 SCFM Clean and Dry “Plant Air” (Class 5.6.4 per ISO 8573.1) Pressure: 90 psig (621 kPa or 6.2 barg) minimum- 3/8" connection
WRO3 280 NB
| Oxygen generation | 37 to 42 liters per minute at 45 to 55 psi, located separate from unit |
| Ozone generation | 280 g/H with a closed loop cooling system |
| Compress air rquirements | Flow Rate: 20 SCFM Clean and Dry “Plant Air” (Class 5.6.4 per ISO 8573.1) Pressure: 90 psig (621 kPa or 6.2 barg) minimum- 3/8" connection |
| Electrical | 230 volt three phase power with neutral and ground 60 Amp Service |
