Thermal Evaporation
Wastewater Technologies

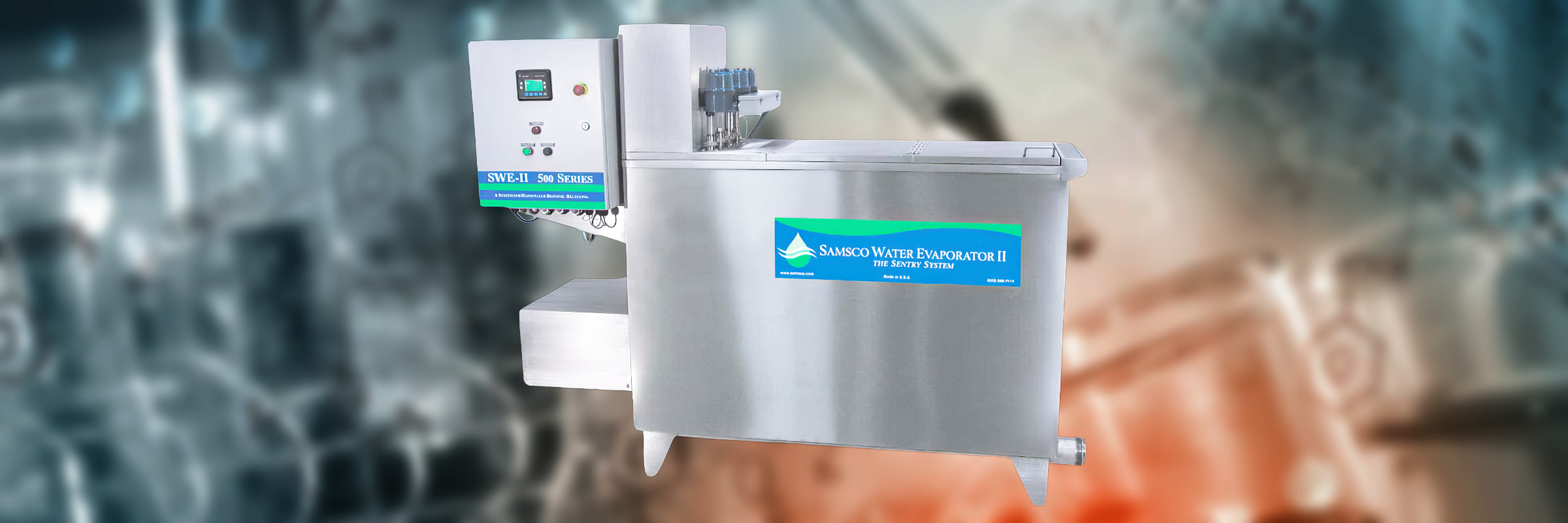

SAMSCOWATER EVAPORATOR II
THE SENTRY SYSTEM
Evaporating treated wastewater reduces off-site disposal disposal costs and limits liability.
Environmental experts agree… evaporation offers the tank wash industry the simplest and most effective, long-term approach to wastewater disposal cost reduction. Since the late 1980’s, SAMSCO EVAPORATORS have been a proven solution to most wastewater disposal problems. Their “special build” chloride resistant design provides low maintenance operation. It is the perfect back-end solution for a solids removal process, where solids and VOC’s are removed via Ozone & Nanobubble.
The SWE-II SYSTEM stands guard as industry processes its wastewater…
• Vacates up to 3,600 GPD in one simple step
• Multiple units can be deployed for high volume operations
• Eliminates POTW discharge accountability
• Allows fully automatic operation 24/7 – little attention required
• Low-cost operation as little as $0.05/gallon
• Two year warranty—the best in the industry

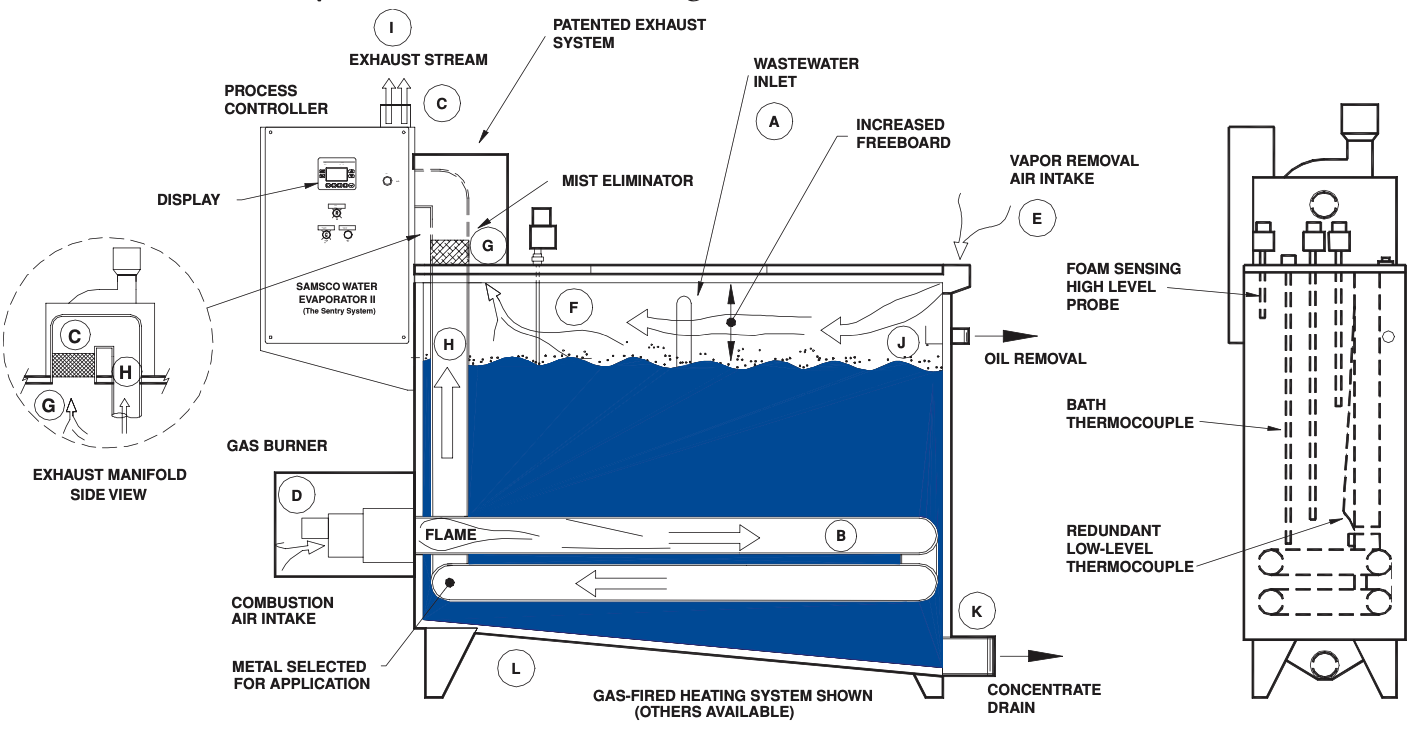

PRINCIPLES OF OPERATION
FEATURES
AND WHAT THEY MEAN TO YOU…
✅ Stainless Steel Exterior Finish
Greater ambient corrosion resistance
✅ Large, raised, NEMA 4 Control Enclosure
Greater ambient moisture tolerance
✅ Screened, upward facing air inlet
Minimizes waste splashing
✅ Additional headspace
Easier skimming of foaming wastes
✅ Low bottom trough
Additional settled sludge capacity
✅ Programmable logic controller with graphic display
User-friendly system status with convenient, eye level display
✅ System process control
Minimizes risk of waste over-concentration
✅ Fail-safe input
Alarms on signal loss (broken wire, etc.)
✅ Emergency stop button (mushroom switch)
Eye-catching safety (system shutoff)
✅ Triple-level security
Ensures safe, approved operation
✅ Blower-off delay
Lengthens blower-motor life & cuts operating cost
✅ Timed Auto-fill
Improves level-control & reduces pump wear
✅ High-level alarm control
Assures longer duty cycle
✅ Flue Temp Monitor
Gives early warning of burner de-tuning
✅ Cycle time monitor
Reduces maintenance time
